Part Number: 16596

Manufacturer's Part Number: FGP-SS4-12-250

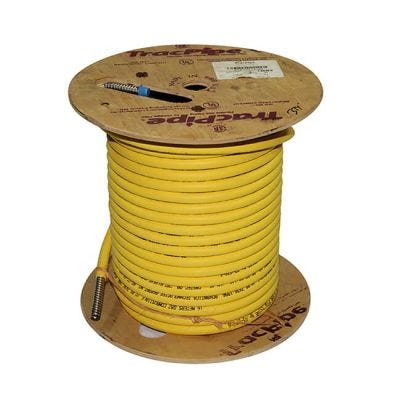

TracPipe® Flexible Steel Gas Pipe - DN12 x 75m

TracPipe® is a stainless steel, semi-rigid (bendable) corrugated gas pipe with a yellow polyethylene cover that is fire and smoke retardant. TracPipe® is an approved gas piping system for natural gas and LPG installations generally between the meter and appliance.
The pipe may be bent by hand, but must NOT be used where repeated bending occurs after installation.
AutoFlare® fittings are used to connect TracPipe®. No welding, soldering or threading is needed.
WEIGHT & SIZE RESTRICTIONS

Some delivery options may not be available

Product Specification

Approved By BS Kitemark Advantica
Brand TracPipe®
Standards BS 7838:1996
Length 75 M
Material Stainless Steel
Max. Operating Pressure 75 Mbar
Min. Bend Radius 76 Mm
Size DN12
Size Code For Pipe DN12
Sub Brand TracPipe
Suitable Application To Run Internal Natural Gas And LPG Supplies From The Meter To The Appliances. TracPipe® Can Be Buried Underground Or Directly In Screed Without The Need For Additional Corrosion Protection
Type Flexible Pipe
