Part Number: 23168
Manufacturer's Part Number: FGP-15-10

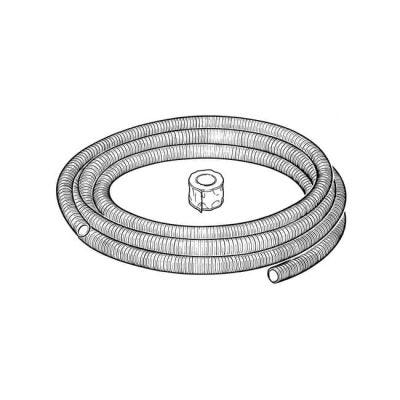

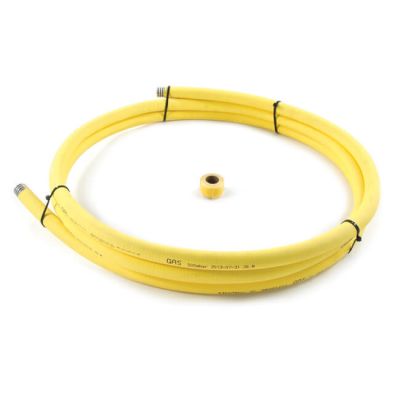

TracPipe Gas Pipe Installer Kit - DN15 x 10m Coil
TracPipe® installer kits for new installation and replacing undersized or damaged copper lines with stainless steel pipe.
Complete with silicone tape (P/N 23184).
TracPipe® is a stainless steel, semi-rigid (bendable) corrugated gas pipe with a yellow polyethylene cover which is fire and smoke retardant. TracPipe® and its associated fittings are approved and Kitemarked to BS 7838:1996 and BS EN 15266:2007. Suitable for a maximum working pressure of 75 mbar when installed in accordance with BS 6891 or BS 5482-1 in domestic premises or in accordance with IGEM/UP/2 in other premises.
The pipe may be bent by hand, but must NOT be used where repeated bending occurs after installation.
For Natural Gas & LPG
WEIGHT & SIZE RESTRICTIONS
Some delivery options may not be available
Product Specification
| Brand | TracPipe® |
| Standards | BSI Kitemarked to BS 7838:1996 |
| Inside Diameter | 15.2 mm (Nominal) |
| Kitemark | KM 52508 |
| Length | 10 m |
| Material | Stainless Steel |
| Max. Operating Pressure | 75 mbar |
| Min. Bend Radius | 76 mm |
| Outside Diameter | 22.1 mm (Cover) |
| Size | DN15 |
| Type | Flexible Pipe |
