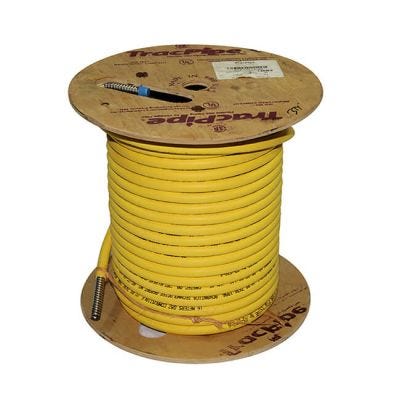

TracPipe® Gas Pipe Installer Kit - DN28 x 5m Coil

Name: TracPipe® Gas Pipe Installer Kit - DN28 x 5m Coil
Brand: TracPipe®
SKU: 23173
Price: 115.29 GBP
Availability: InStock

TracPipe® installer kits for new installation and replacing undersized or damaged copper lines with stainless steel pipe.

Complete with silicone tape (P/N 23184).

TracPipe® is a stainless steel, semi-rigid (bendable) corrugated gas pipe with a yellow polyethylene cover which is fire and smoke retardant. TracPipe® and its associated fittings are approved and Kitemarked to BS 7838:1996 and BS EN 15266:2007. Suitable for a maximum working pressure of 75 mbar when installed in accordance with BS 6891 or BS 5482-1 in domestic premises or in accordance with IGEM/UP/2 in other premises.

The pipe may be bent by hand, but must NOT be used where repeated bending occurs after installation.

For Natural Gas & LPG

WEIGHT & SIZE RESTRICTIONS

Some delivery options may not be available

Product Specification

Brand	TracPipe®
Approved by	BS Kitemark Advantica
Kitemark	KM 52508
Standards	BSI Kitemarked to BS 7838:1996
Inside Diameter	26.9 mm (Nominal)
Outside Diameter	42.3 mm (Cover)
Length	5 m
Material	Stainless Steel
Max. Operating Pressure	75 mbar
Min. Bend Radius	127 mm
Size	DN28
Type	Flexible Pipe
