Part Number: 20235
Manufacturer's Part Number: FGP-28-15KIT

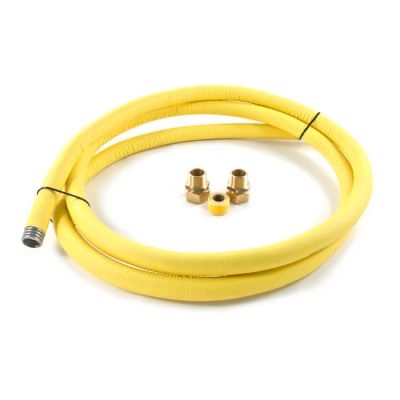

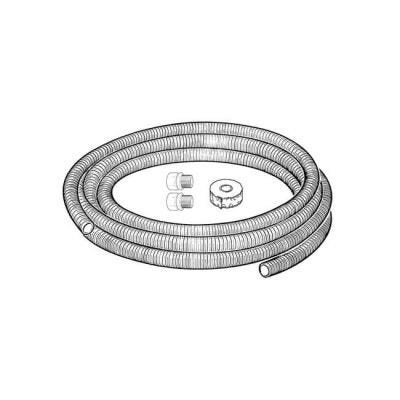

TracPipe® Pipe Replacement Kit 28mm x 15m Coil - 1"
28 mm TracPipe with two 1" BSP TM AutoFlare® fittings and silicone tape.
TracPipe 28 mm is a stainless steel, semi-rigid (bendable) corrugated boiler gas supply pipe with a yellow polyethylene cover which is fire and smoke retardant. Suitable for a maximum working pressure of 500 mbar.
TracPipe 28 mm replacement kits are ideal for replacing undersized or damaged copper lines with stainless steel pipe. Available in 5 m, 10 m and 15m lengths, complete with two AutoFlare® fittings and tape. No welding, soldering or threading is required.
- Specially designed for gas pipework replacement
- It is easy to cut and bend by hand
- No soldering or welding
- No specialist tools required with TracPipe DN28 AutoFlare® fittings
The pipe may be bent by hand, but must NOT be used where repeated bending occurs after installation.
For Natural Gas and LPG.
WEIGHT & SIZE RESTRICTIONS
Some delivery options may not be available
|Standards||BS 7838 & BS EN 15266|
|Contents||Two Autoflare® fittings and tape|
|Inside Diameter||26.9 mm (Nominal)|
|Outside Diameter||35.1 mm (Cover)|
|Max. Operating Pressure||75 mbar|
|Min. Bend Radius||127 mm|
|Size code for pipe||DN28|
|Suitable Application||To run internal Natural gas and LPG supplies from the meter to the appliances. TracPipe® can be buried underground or directly in screed without the need for additional corrosion protection.|
|Type||Pipe Replacement Kit|
