Part Number: 7457

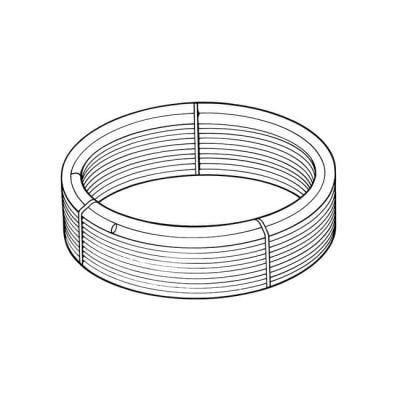

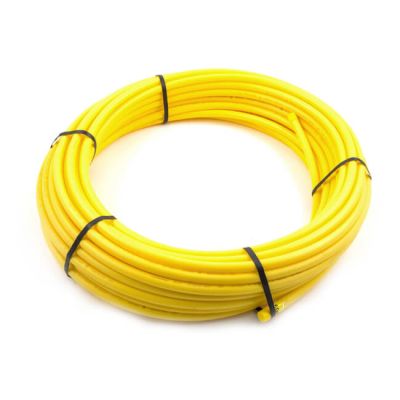

Gas Pipe Coil - 63mm x 50m Yellow MDPE
SAFETY NOTE: Pipe is held in coils under tension and is strapped accordingly. Please refer to guidance notes on handling PE pipe supplied in coils before attempting to release pipe.
BSI approved and Kitemarked to GIS/PL2-2:2006. SDR(Standard Dimensional Ratio): 20 mm SDR 8.7, other sizes SDR 11. Maximum pressure rating 5.5 bar at 20°C. for gas supply below ground. Underground marker tape to cover the pipe below is available.
For Natural Gas and LPG.
WEIGHT & SIZE RESTRICTIONS
Some delivery options may not be available
|Standards||BS EN ISO 9001:2008|
|Coil Width||200 mm|
|Inside Diameter||50.8 mm|
|Max. Pressure||5.5 bar at 0 to 20°C|
|Outside Diameter||63 mm|
|Pipe Length||50 m|
|Pressure||5.5 bar at 0 to 20°C|
|Suitable Application||Natural Gas and LPG|
