Part Number: 24113
Manufacturer's Part Number: 124-6006

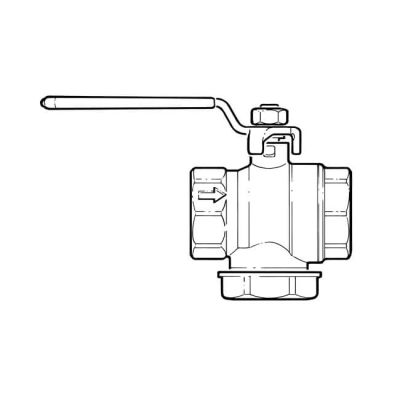

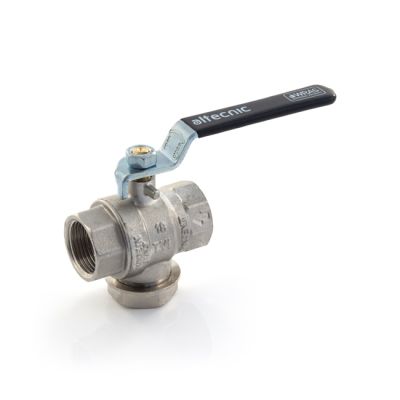

Filter Ball Valve - 1.1/4" BSP PF Black Lever Handle
1.1/4" ball valve with removable integral stainless steel and nylon strainer, chrome plated brass body and black lever handle.
Mesh size: 0.5mm (500 micron).
Mesh size: 0.5mm (500 micron).
See More >
Product Specification
| Approved by | WRAS |
| Standards | BS EN ISO 228 |
| Application | Water |
| Connection | BSP PF |
| Finish | Chrome Plated |
| Full Bore | No |
| Handle | Lever |
| Handle Colour | Black |
| Lockable | No |
| Material | Brass |
| Max. Operating Pressure | 20 bar between 18° C and 40° C |
| Max. Operating Temperature | 140° C |
| Pressure Rating | 20 bar |
| Size | 1.1/4" |
| Temperature Range | -20 to 100° C |
| Type | Filter Ball Valve |
| WRAS Approved | Approval Number: 2209061 |
