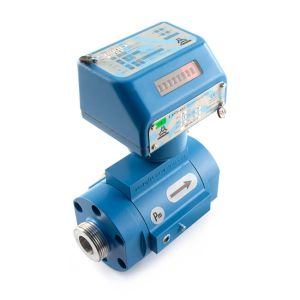

The G25 Turbine Quantometer Gas Meter 1" Threaded Aluminium Body is a high-performance turbine gas meter designed for accurate measurement of Natural Gas and LPG. With low pressure drop to comply with IGE/UP/2 requirements ideal for commercial application.
The meter features a threaded design, combining efficiency with a lightweight aluminium body for easy installation and durability. With a low-pressure drop, it meets stringent IGE/UP/2 standards for efficient gas flow measurement.
The meter guarantees accurate measurements across a broad range of flow rates, ensuring high accuracy, crucial for reliable gas flow measurement. Equipped with a low-frequency pulse output transmitter, it connects to a remote display or Building Management System (BMS) for enhanced control.
It can be installed vertically or horizontally for additional flexibility and is suitable for both internal and external installations, provided it's shielded from direct weather influences. The thread conforms to ISO 7 / EN 10226-1 standards with the capability of being installed on pipe lengths of 5D upstream and 3D downstream configurations.
Designed for commercial use, this turbine quantometer provides reliable and accurate gas measurement.
https://www.bes.co.uk/g25-turbine-quantometer-gas-meter-1-22120/37664G25 Turbine Quantometer Gas Meter - 1"https://www.bes.co.uk/media/catalog/product/g/2/g25-turbine-quantometer-gas-meter-1-22120_p_1.jpg731.13731.13GBPInStock/Natural Gas & LPG/Meter & Fittings/Meter6761251185<div class="descriptionellis" id="descriptionellis">
<p>The G25 Turbine Quantometer Gas Meter 1" Threaded Aluminium Body is a high-performance turbine gas meter designed for accurate measurement of Natural Gas and LPG. With low pressure drop to comply with IGE/UP/2 requirements ideal for commercial application.</p>
<p>The meter features a threaded design, combining efficiency with a lightweight aluminium body for easy installation and durability. With a low-pressure drop, it meets stringent IGE/UP/2 standards for efficient gas flow measurement.</p>
<p>The meter guarantees accurate measurements across a broad range of flow rates, ensuring high accuracy, crucial for reliable gas flow measurement. Equipped with a low-frequency pulse output transmitter, it connects to a remote display or Building Management System (BMS) for enhanced control.</p>
<p>It can be installed vertically or horizontally for additional flexibility and is suitable for both internal and external installations, provided it's shielded from direct weather influences. The thread conforms to ISO 7 / EN 10226-1 standards with the capability of being installed on pipe lengths of 5D upstream and 3D downstream configurations.</p>
<p>Designed for commercial use, this turbine quantometer provides reliable and accurate gas measurement.</p>
<p>Compatible <a href="https://www.bes.co.uk/natural-gas-lpg/meter-fittings/housing-box/"> Housing Boxes</a>, <a href="https://www.bes.co.uk/natural-gas-lpg/meter-fittings/fittings-seals/">Fittings & Seals</a> and <a href="https://www.bes.co.uk/tools-equipment/screws-fixings/fixing/">Fixings</a> available.</p>
<p><span style="font-weight: bold;">Benefits</span></p>
<ul style="list-style: circle outside; line-height: 110%;">
<li>Designed for use with natural gas and LPG</li>
<li>Complies with IGE/UP/2 standards</li>
<li>Suitable for internal and external installation</li>
<li>High level of accuracy</li>
<li>Can be installed on 5D upstream and 3D downstream</li>
<li>1” meter connection size</li>
<li>Threaded aluminium body</li>
</ul>
</div>
<div id="toggle-btn" onclick="toggleDescriptionellis()">See More ⯈</div>Unbranded00https://www.bes.co.uk/media/catalog/product/1/i/1in-turbine-quantometer-threaded-aluminium-body-g25_min_22120_L_1.jpgadd-to-cartfacet_type:Commercial Meterspecial_price:731.130000is_on_sales:Nomore_sizes:22119,22121,22122,22123,22124,22125sku:22120Commercial MeterNo22119,22121,22122,22123,22124,2212522120731.130000No{"Standards":"ISO 7 \/ 10226-1","Accuracy":"Qt \u00f7 Qmax \u003C\u00b11.5%. Qmin \u00f7 Qt \u003C\u00b13.0%","Capacity":"40 m\u00b3\/h","Connection":"1" BSP","Display":"Mechanical","Flow Rate":"4 to 40 m\u00b3\/h","Length":"250 mm","Material":"Aluminium","Max. Operating Pressure":"16 bar","Meter Type":"Turbine Quantometer","Nominal Bore":"1" DN25","Protection Rating":"IP65","Suitable Application":"For natural gas & LPG with a low pressure drop requirement.","Temperature Range":"Working: -20 to 60°C ","Test Point":"No","Turndown Ratio":"10:1","Type":"Commercial Meter","Weight":"4.6 kg"}Unbranded40 m³/hBlueAluminiumTurbine Quantometer1"
