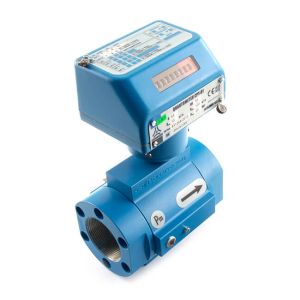

G40 Turbine Quantometer Gas Meter - 2"

Part number: 22124

Threaded aluminium body.

Turbine meters suitable for Natural gas and LPG with a low pressure drop to comply with the requirements of IGEM/UP/2. Body manufactured from aluminium. A low frequency pulse output transmitter is fitted and the meter can be connected to a remote display or BMS. The meters are IP65 rated and suitable for internal and external installation, however they must be protected from direct weather influences. The meter can be installed vertically or horizontally and the index assembly can be rotated through 345°.

Threads to ISO 228-1.

Install the meter after a pipe length of 5D upstream and 3D downstream.

View the size guide
close
P/NBoreSizeFlow range m3/hFace to face mmWeight kg
22119 1" DN25 CPT25SG16 2.5 - 25 250 4.6
22120 1" DN25 CPT25SG25 4 - 40 250 4.6
22121 1.25" DN32 CPT30SG25 4 - 40 250 4.6
22122 1.5" DN40 CPT40SG40 6 - 65 160 4.4
22123 1.5" DN40 CPT40SG65 10 - 100 160 4.4
22124 2" DN50 CPT50SG40 6 - 65 160 4.4
22125 2" DN50 CPT50SG65 10 - 100 160 4.4

Inc. VAT

£753.92

Ex. VAT

£628.27

Free delivery

UK orders over £50

Product and product options

P/N

Unit price

Quantity

G16 Turbine Quantometer Gas Meter - 1"

P/N 22119

Ex. VAT

£628.27

Inc. VAT

£753.92

Quantity
G25 Turbine Quantometer Gas Meter - 1"

P/N 22120

Ex. VAT

£628.27

Inc. VAT

£753.92

Quantity
G25 Turbine Quantometer Gas Meter - 1.1/4"

P/N 22121

Ex. VAT

£628.27

Inc. VAT

£753.92

Quantity
G40 Turbine Quantometer Gas Meter - 1.1/2"

P/N 22122

Ex. VAT

£628.27

Inc. VAT

£753.92

Quantity
G65 Turbine Quantometer Gas Meter - 1.1/2"

P/N 22123

Ex. VAT

£628.27

Inc. VAT

£753.92

Quantity
G65 Turbine Quantometer Gas Meter - 2"

P/N 22125

Ex. VAT

£628.27

Inc. VAT

£753.92

Quantity
2 More sizes available (show all)
  • Product Description

Threaded aluminium body.

Turbine meters suitable for Natural gas and LPG with a low pressure drop to comply with the requirements of IGEM/UP/2. Body manufactured from aluminium. A low frequency pulse output transmitter is fitted and the meter can be connected to a remote display or BMS. The meters are IP65 rated and suitable for internal and external installation, however they must be protected from direct weather influences. The meter can be installed vertically or horizontally and the index assembly can be rotated through 345°.

Threads to ISO 228-1.

Install the meter after a pipe length of 5D upstream and 3D downstream.

accuracy
Qt ÷ Qmax <±1.5%. Qmin ÷ Qt <±3.0%
bs eu standards
  • ISO 228-1
capacity
65 m³/h
connection
2"
display
Mechanical
flow rate
6 to 65 m³/h
length
160 mm
material
Aluminium
max operating pressure
16 bar
meter connection size
2" DN50
meter type
Turbine Quantometer
nominal bore
2" DN50
suitable application
Turbine meters suitables & LPG with a low pressure drop.
temperature range
Working: -20 to 60°C
test point
No
turndown ratio
10:1
