The Industrial Regulator - 2.1/2" F x F Elster Service and Appliance Regulator is a versatile solution suitable for a wide range of applications including domestic, commercial, and industrial settings. Offering flexibility in installation, as it can be fitted into both horizontal and vertical pipework configurations.
The 2.1/2” BSP connection is compliant with stringent standards which meets the general requirement of the European Gas Appliance Directive (90/396/EEC).
Operating within a temperature range of -20°C to 70°C, this regulator can withstand diverse environmental conditions encountered in domestic, commercial, and industrial environments. With a maximum inlet pressure of 200 mbar (2.9 p.s.i), it ensures reliable and consistent performance under varying pressure conditions.
The regulator comes pre-set at an outlet pressure of 20 mbar, providing optimal regulation for gas flow. However, it offers flexibility for customisation, allowing for different outlet pressure ranges by simply fitting an optional alternative spring (PN 16057 - 30-75 mbar outlet pressure range), ensuring adaptability to specific operational requirements.
Featuring a 2" BSP female thread to BS EN 10226-1 standard, the regulator offers ease of installation and compatibility with existing pipework configurations.
In summary, the Industrial Regulator - 2.1/2" F x F stands as a dependable choice for a wide array of applications, from domestic households to commercial and industrial settings. Its adherence to rigorous standards, coupled with its versatility and customisable pressure settings, make it an essential component in ensuring safe and efficient gas supply systems
2.1/2” BSP connection compliant with EGAD 90/396/EEC
Can be fitted both horizontal and vertical
Suitable for domestic, commercial and industrial environments
BSP Explained
×
BES Ltd., British Standard Pipe Thread Identification Chart.
BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.
Further advice can be obtained from our Technical Team if you are still unsure.
BSP Size
Actual Diameter of Thread
1/8"
9.728 mm
1/4"
13.157 mm
3/8"
16.662 mm
1/2"
20.995 mm
3/4"
26.441 mm
1"
33.249 mm
1 1/4"
41.910 mm
1 1/2"
47.803 mm
2"
59.614 mm
2 1/2"
75.184 mm
3"
87.884 mm
The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.
Order by 9pm Monday - Friday for next working day delivery.
Subject to change
Small Parcel
Large Parcel
Pallets < 800 kilos
Pallets >= 800 kilos
UK mainland (except Scottish Highlands and some other areas)
Next day
Next day
2 to 3 days
2 to 3 days
Scottish Highlands, UK Islands, some other areas
2 to 3 days
2 to 3 days
2 to 3 days
2 to 3 days
Northern Ireland
1 to 2 days
2 to 3 days
2 to 3 days
2 to 3 days
Channel Islands, Isle of Man and Republic of Ireland
2 to 3 days
2 to 3 days
2 to 3 days
2 to 3 days
EU
2 to 5 days
2 to 5 days
2 to 5 days
2 to 5 days
Rest of World
Please enquire
Please enquire
Please enquire
Please enquire
Delivery is FREE for orders with a value of over £50 (excluding VAT) which are despatched by B.E.S.’s usual means in one consignment. Orders of £50 and under (excluding VAT) will incur a delivery charge of £4.95 plus VAT.
We are happy to arrange for delivery of the Goods on your behalf other than by our usual means, however, any additional charges involved will need to be borne by you.
Whilst we make every effort to deliver Goods within the estimated timescales, delays are, however, occasionally inevitable as they may depend, among other things, on availability of the Goods. We shall not be liable for any delay in delivery of the Goods where the delay is beyond our control.
Although any dates quoted for delivery of the Goods are approximate only, the following delivery times are in our experience usual (these estimates exclude Saturdays, Sunday and public holidays):
We always aim to deliver Goods as near to our estimated times as possible and in any event within 30 days of entering into a contract with you. Where we are unable to deliver the Goods within this time, we will inform you of this. You will be free in this case to cancel the contract and we will reimburse you in full as soon as possible and in any event within 30 days of cancellation.
For delivery times to countries outside the UK, please contact us. We regret that there may be countries outside the UK to which we will not deliver Goods.
Please note that delivery may be made in instalments.
Delivery and packaging
Time for delivery is given as accurately at possible but is not guaranteed. The Customer shall have no right to damages or to cancel the order for failure for any cause to meet any delivery time stated nor shall the Customer be entitled to make, or to purport to make, time for delivery of the essence of the contract.
The date of delivery shall in every case be dependant upon prompt receipt of all necessary information final instructions or approvals from the Customer. Any delays or alternations by the Customer in design, specifications or quantities required may result in delay in delivery.
Failure by the Customer to take delivery of or to make payment in respect of any one or more instalments of Goods delivered under this contract shall entitle the Company to treat the whole or part of the contract as repudiated by the Customer.
The Company will endeavour to comply with reasonable requests by the Customer for postponement of delivery but shall be under no obligation to do so. Where delivery is postponed otherwise than due to the default by the Company, the Customer shall pay all costs and expenses, including a reasonable charge for storage and transportation so occasioned and payment for the Goods shall be made in accordance with these Conditions.
Any packaging by the Company, unless otherwise expressly agreed in writing is intended to provide adequate protection in normal conditions of transit of usual duration. Unless otherwise agreed in writing, cases and other packing materials, when charged for, will be credited if returned to the Company's works within 28 days of the date of invoice, carriage paid and in good condition.
The Company will not be liable for unloading the Goods at the designated point of delivery or for placing them in position on site, except by prior agreement in writing.
Where the Company accepts an order for the supply of Goods to be called off by the Customer over a period then unless otherwise agreed by the Company in writing, such call offs must be made so as to complete delivery of all Goods within 12 months from the date of the Customer's order.
The Company shall have the right to make delivery by instalments and in that event each delivery shall stand as a separate contract and failure to make any instalment delivery shall not entitle the Customer to repudiate the whole contract.
Unless otherwise agreed in writing, whether or not the Company shall arrange transport by its own vehicles or otherwise, delivery shall be effected when the Goods leave the premises of the Company or those of the suppliers to the Company where the Goods are despatched direct from such suppliers premises to the Customer.
Any delivery note or notes presented by or on behalf of the Company and/or its carrier must be signed on receipt of the Goods.
If the Customer requires an alteration in the quantity of an order including suspension or reduction of "firm" schedules then all Goods already in progress may be delivered in accordance with the earlier instructions of the Customer and shall be paid for by the Customer.
If and so far as work has been necessarily commenced in advance of "firm" schedules in order to provide in accordance with a normal process time cycle for deliveries indicated by a "tentative schedule" the Customer shall be liable to accept delivery of such Goods at the times and in the quantities so indicated and to pay therefor.
Save in the case of export contract all pallets and stillages used by the Company in the delivery of the Goods shall remain the property of the Company and shall be returned by the Customer to the Company. Section 32(2) of the Sale of Goods Act 1979 shall not apply. The Company shall not be required to give the Customer the notice specified in section 32(3) of that Act.
Order by 9pm Monday - Friday for next working day delivery.
Subject to change
Small Parcel
Large Parcel
Pallets < 800 kilos
Pallets >= 800 kilos
UK mainland (except Scottish Highlands and some other areas)
Next day
Next day
2 to 3 days
2 to 3 days
Scottish Highlands, UK Islands, some other areas
2 to 3 days
2 to 3 days
2 to 3 days
2 to 3 days
Northern Ireland
1 to 2 days
2 to 3 days
2 to 3 days
2 to 3 days
Channel Islands, Isle of Man and Republic of Ireland
2 to 3 days
2 to 3 days
2 to 3 days
2 to 3 days
EU
2 to 5 days
2 to 5 days
2 to 5 days
2 to 5 days
Rest of World
Please enquire
Please enquire
Please enquire
Please enquire
Delivery is FREE for orders with a value of over £50 (excluding VAT) which are despatched by B.E.S.’s usual means in one consignment. Orders of £50 and under (excluding VAT) will incur a delivery charge of £4.95 plus VAT.
We are happy to arrange for delivery of the Goods on your behalf other than by our usual means, however, any additional charges involved will need to be borne by you.
Whilst we make every effort to deliver Goods within the estimated timescales, delays are, however, occasionally inevitable as they may depend, among other things, on availability of the Goods. We shall not be liable for any delay in delivery of the Goods where the delay is beyond our control.
Although any dates quoted for delivery of the Goods are approximate only, the following delivery times are in our experience usual (these estimates exclude Saturdays, Sunday and public holidays):
We always aim to deliver Goods as near to our estimated times as possible and in any event within 30 days of entering into a contract with you. Where we are unable to deliver the Goods within this time, we will inform you of this. You will be free in this case to cancel the contract and we will reimburse you in full as soon as possible and in any event within 30 days of cancellation.
For delivery times to countries outside the UK, please contact us. We regret that there may be countries outside the UK to which we will not deliver Goods.
Please note that delivery may be made in instalments.
Delivery and packaging
Time for delivery is given as accurately at possible but is not guaranteed. The Customer shall have no right to damages or to cancel the order for failure for any cause to meet any delivery time stated nor shall the Customer be entitled to make, or to purport to make, time for delivery of the essence of the contract.
The date of delivery shall in every case be dependant upon prompt receipt of all necessary information final instructions or approvals from the Customer. Any delays or alternations by the Customer in design, specifications or quantities required may result in delay in delivery.
Failure by the Customer to take delivery of or to make payment in respect of any one or more instalments of Goods delivered under this contract shall entitle the Company to treat the whole or part of the contract as repudiated by the Customer.
The Company will endeavour to comply with reasonable requests by the Customer for postponement of delivery but shall be under no obligation to do so. Where delivery is postponed otherwise than due to the default by the Company, the Customer shall pay all costs and expenses, including a reasonable charge for storage and transportation so occasioned and payment for the Goods shall be made in accordance with these Conditions.
Any packaging by the Company, unless otherwise expressly agreed in writing is intended to provide adequate protection in normal conditions of transit of usual duration. Unless otherwise agreed in writing, cases and other packing materials, when charged for, will be credited if returned to the Company's works within 28 days of the date of invoice, carriage paid and in good condition.
The Company will not be liable for unloading the Goods at the designated point of delivery or for placing them in position on site, except by prior agreement in writing.
Where the Company accepts an order for the supply of Goods to be called off by the Customer over a period then unless otherwise agreed by the Company in writing, such call offs must be made so as to complete delivery of all Goods within 12 months from the date of the Customer's order.
The Company shall have the right to make delivery by instalments and in that event each delivery shall stand as a separate contract and failure to make any instalment delivery shall not entitle the Customer to repudiate the whole contract.
Unless otherwise agreed in writing, whether or not the Company shall arrange transport by its own vehicles or otherwise, delivery shall be effected when the Goods leave the premises of the Company or those of the suppliers to the Company where the Goods are despatched direct from such suppliers premises to the Customer.
Any delivery note or notes presented by or on behalf of the Company and/or its carrier must be signed on receipt of the Goods.
If the Customer requires an alteration in the quantity of an order including suspension or reduction of "firm" schedules then all Goods already in progress may be delivered in accordance with the earlier instructions of the Customer and shall be paid for by the Customer.
If and so far as work has been necessarily commenced in advance of "firm" schedules in order to provide in accordance with a normal process time cycle for deliveries indicated by a "tentative schedule" the Customer shall be liable to accept delivery of such Goods at the times and in the quantities so indicated and to pay therefor.
Save in the case of export contract all pallets and stillages used by the Company in the delivery of the Goods shall remain the property of the Company and shall be returned by the Customer to the Company. Section 32(2) of the Sale of Goods Act 1979 shall not apply. The Company shall not be required to give the Customer the notice specified in section 32(3) of that Act.
https://www.bes.co.uk/industrial-regulator-21-2-f-x-f-8194/34784Industrial Regulator - 2.1/2" F x Fhttps://www.bes.co.uk/media/catalog/product/2/-/2-1-2in-x-2-1-2in-f-x-f-industrial-regulator_min_8194_P_1.jpg692.61692.61GBPInStock/Our Brands/Elster/Natural Gas & LPG/Natural Gas/Regulator/Commercial & Industrial Gas Regulators3917151285403705
<p> The Industrial Regulator - 2.1/2" F x F Elster Service and Appliance Regulator is a versatile solution suitable for a wide range of applications including domestic, commercial, and industrial settings. Offering flexibility in installation, as it can be fitted into both horizontal and vertical pipework configurations.</p>
<p>The 2.1/2” BSP connection is compliant with stringent standards which meets the general requirement of the European Gas Appliance Directive (90/396/EEC).</p>
<p>Operating within a temperature range of -20°C to 70°C, this regulator can withstand diverse environmental conditions encountered in domestic, commercial, and industrial environments. With a maximum inlet pressure of 200 mbar (2.9 p.s.i), it ensures reliable and consistent performance under varying pressure conditions.</p>
<p>The regulator comes pre-set at an outlet pressure of 20 mbar, providing optimal regulation for gas flow. However, it offers flexibility for customisation, allowing for different outlet pressure ranges by simply fitting an optional alternative spring (PN <a href="https://www.bes.co.uk/industrial-angled-regulator-spring-30-75-mbar-fits-p-n-8194/">16057</a> - 30-75 mbar outlet pressure range), ensuring adaptability to specific operational requirements.</p>
<p>Featuring a 2" BSP female thread to BS EN 10226-1 standard, the regulator offers ease of installation and compatibility with existing pipework configurations.</p>
<p>In summary, the Industrial Regulator - 2.1/2" F x F stands as a dependable choice for a wide array of applications, from domestic households to commercial and industrial settings. Its adherence to rigorous standards, coupled with its versatility and customisable pressure settings, make it an essential component in ensuring safe and efficient gas supply systems</p>

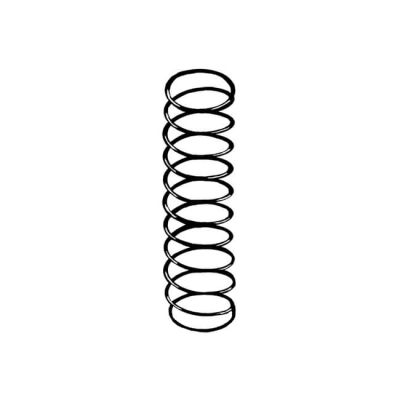

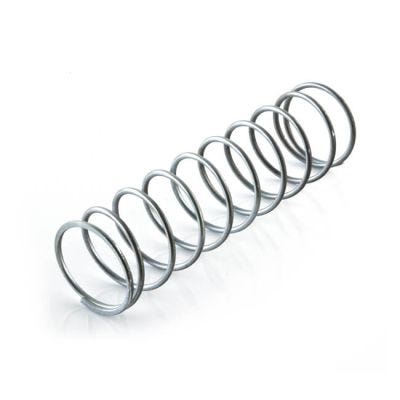

<p>Compatible <a href="https://www.bes.co.uk/industrial-angled-regulator-spring-30-75-mbar-fits-p-n-8194/"> Regulator spring</a> and alternative<a href="#more_product_options"> options</a> available.</p>
