Part Number: 23668
Manufacturer's Part Number: ACDG16

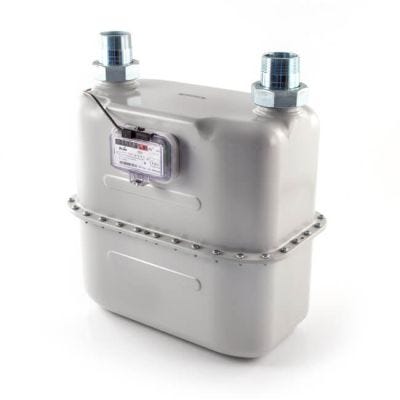

ITRON G16P Diaphragm Gas Meter

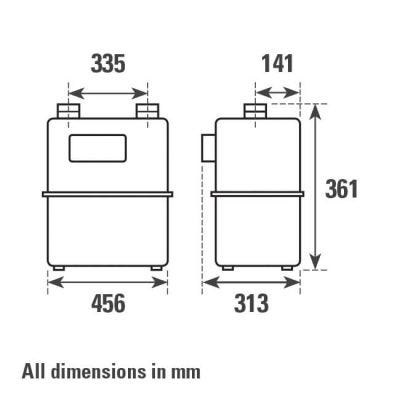

Manufactured by an ISO 9001 company in Europe, certified under the European certification regime and sealed. Metrology is in accordance with BS EN 1359 and MID. Approved to MID (04/22/EC) module B and BS EN 1359. Meter reads in cubic metres. Supplied without test point. Meter supplied with a Cyble module to give a pulse output, with 5 m lead. Check that this meter has the inlet/outlet dimension ‘A’ and connection size to meet with the requirements because these may differ from the traditional ‘UK’ meter dimensions. Supplied with 1.1/2" BSP meter unions.
See More >
Product Specification
Brand | Itron |
Approved by | MID (04/22/EC) module B & BS EN 1359 |
Capacity | 25 m³/h |
Display | Mechanical |
Material | Steel |
Max. Operating Pressure | 0.5 bar |
Meter Connection Size | 1.1/2" BSP TM |
Meter Type | Diaphragm |
Secondary Capacity | 5 m³/hr at 0.5 mbar pressure loss |
Suitable Application | Natural Gas and LPG |
Test Point | No |
Type | Commercial Meter |
